    • L&T Project Disposal - MS , DI , GI Pipes , Flange , Water Meter - UWSS Project
    Project Disposal Description Project Disposal Details
    Product Code epcemart-188383
    Available Quantity 1
    UOM NOS
    Price on Request
    Yes
    Region Madhya Pradesh
    Catalogue Upload 2026-01-12-6964d08d66bb1.pdf
    Enquire Now

    Detailed Description :

    SL.NO.MATERIAL DESCUOMSTK QUANTITY
    1MS PIPE; DIAMETER :- NB 250 mm; WALL THICKNESS :- 6.4 mm;metre19.295
    2MS PIPE;TYPE:-Coated;STANDARD:-IS 3589;GRADE:-Fe 410;DIAMETER:-508 mm (OD);WALL THICKNESS:-8 mmmetre3.5
    3GI PIPE; TYPE :- ERW; STANDARD :- IS 1239; GRADE :- Fe 410; CLASS :- Heavy; TYPE OF PIPE-ENDS :- Plain; DIAMETER :- NB 15 mm; WALL THICKNESS :- 2.6 mm; LENGTH :- 6 MTR;metre3079
    4MS PIPE; TYPE :- Coated; STANDARD :- IS 1239; GRADE :- Fe 410; TYPE OF PIPE-ENDS :- Bevel; DIAMETER :- NB 150 mm; WALL THICKNESS :- 5.4 mm;metre8

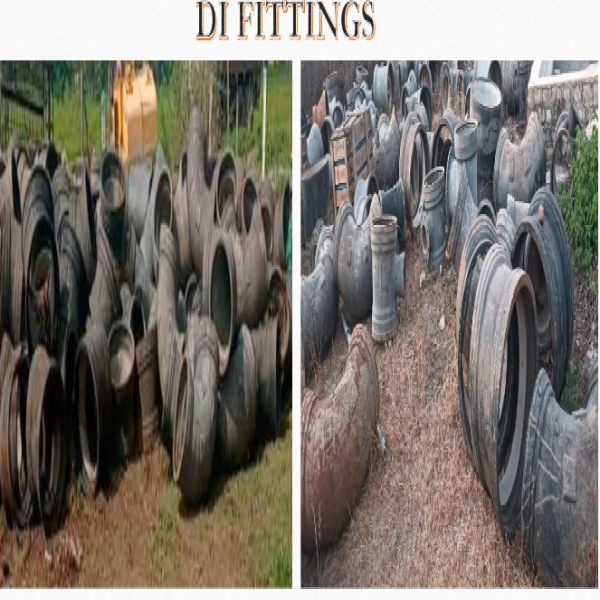

    5EQUAL TEE; DI; CLASS :- K12; PIPE DIAMETER :- DN 700 mm;Numbers3
    6TAIL PIECE; HDPE; CLASS :- PN6; PIPE DIAMETER :- DN 200 mm;Numbers148
    7EQUAL TEE; DI; CLASS :- K12; TYPE OF ENDS :- DOUBLE SOCKET; PIPE DIAMETER :- DN 450 mm;Numbers3
    8UNEQUAL TEE; DI; CLASS :- K12; TYPE OF ENDS :- DOUBLE SOCKET; LARGER DIAMETER :- DN 500 mm; SMALLER DIAMETER :- DN 400 mm;Numbers2
    9UNEQUAL TEE; DI; K14; TYPE OF ENDS :- DOUBLE SOCKET; LARGER DIAMETER :- DN 700 mm; SMALLER DIAMETER :- DN 500 mm;Numbers1
    10FLANGE; MS; PN10; LARGER DIAMETER :- DN 700 mm; SMALLER DIAMETER :- DN 700 mm;Numbers4
    11BEND;DI;90 degree;IS 9523;K12;TYPE OF ENDS:-DOUBLE SOCKET;PIPE DIAMETER:-DN 450 mmNumbers1

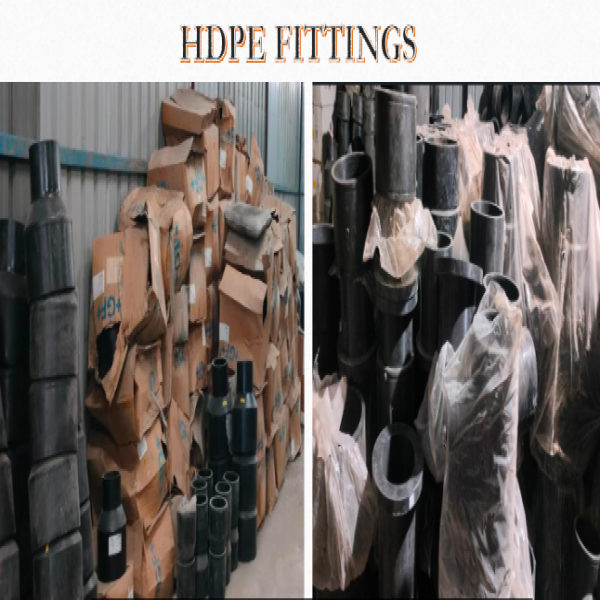

    12EQUAL TEE; HDPE; PE 100; CLASS :- PN 12.5; PIPE DIAMETER :- DN 160 mm;Numbers78
    13BEND; HDPE; 90 degree; PE 100; CLASS :- PN 16; TYPE OF ENDS :- PLAIN ENDS; PIPE DIAMETER :- DN 250 mm;Numbers9
    14STUB END;HDPE;PE 100;PN10;PIPE DIAMETER:-DN 315 mmNumbers8
    15UNEQUAL TEE; DI; IS 9523; K12; TYPE OF ENDS :- SOCKET WITH FLANGE BRANCH; LARGER DIAMETER :- DN 400 mm; SMALLER DIAMETER :- DN 150 mm;Numbers5
    16UNEQUAL TEE; DI; IS 9523; K12; TYPE OF ENDS :- SOCKET WITH FLANGE BRANCH; LARGER DIAMETER :- DN 450 mm; SMALLER DIAMETER :- DN 250 mm;Numbers1
    17ELBOW - 90 DEG; HDPE; PIPE DIAMETER :- DN 250 mm;Numbers7
    18UNEQUAL TEE; DI; K12; TYPE OF ENDS :- SOCKET WITH FLANGE BRANCH; LARGER DIAMETER :- DN 500 mm; SMALLER DIAMETER :- DN 300 mm;Numbers2
    19DATA LOGGER SYSTEM; TYPE :- Pressure;Numbers1
    20ENCLOSURE BOX; TYPE :- 4 WAY VTPN;Numbers20
    21PRESSURE GAUGE; TYPE :- Analog; SENSING MATERIAL :- SS 316; PRESSURE :- 0 - 20 Kg/cm2; DIAL SIZE :- 100 mm dia.; PROCESS CONNECTION :- 1/2 NPT(M); ELECTRICAL CONNECTION :- N/A;Numbers8
    22ELECTROMAGNETIC FLOWMETER; TYPE :- PN 16; SIZE :- DN 400 mm;Numbers1
    23WATER METER; TYPE :- Class B Multijet - Magnetically Coupled with AMR Compatibility; SIZE :- DN 15 mm;Numbers734
    24WATER METER PROTECTION BOX; SIZE :- 15 mm;Numbers19248
    25Ductile iron double Socket 90° Bends conforming to IS-9523/2000 having dimension as per table 16 of IS-9523/2000 in the nominal diameter/sizes with external bitumen coating and internal cement mortor lining (laying conforming to IS 12288:1987) for 400mm dia - Indore UWSSNumbers18
    26Ductile Iron Double Socket branch flange Tee conforming to IS-9523/2000 having dimension as per table 21 of IS-9523/2000 in the nominal diameter/sizes with external bitumen coating and internal cement mortar lining with finishing as per clause 13 of IS-9523/2000. (laying conforming to IS 12288 : 1987) (All sizes in mm) for 300x200 mm dia- Indore UWSSNumbers3
    27Ductile Iron Double Socket branch flange Tee conforming to IS-9523/2000 having dimension as per table 21 of IS-9523/2000 in the nominal diameter/sizes with external bitumen coating and internal cement mortar lining with finishing as per clause 13 of IS-9523/2000. (laying conforming to IS 12288 : 1987) (All sizes in mm) for 350x150 mm dia- Indore UWSSNumbers2
    28Ductile Iron Double Socket branch flange Tee conforming to IS-9523/2000 having dimension as per table 21 of IS-9523/2000 in the nominal diameter/sizes with external bitumen coating and internal cement mortar lining with finishing as per clause 13 of IS-9523/2000. (laying conforming to IS 12288 : 1987) (All sizes in mm) for 350x350 mm dia- Indore UWSSNumbers4
    29Ductile Iron Double Socket branch flange Tee conforming to IS-9523/2000 having dimension as per table 21 of IS-9523/2000 in the nominal diameter/sizes with external bitumen coating and internal cement mortar lining with finishing as per clause 13 of IS-9523/2000. (laying conforming to IS 12288 : 1987) (All sizes in mm) for 450x250 mm dia- Indore UWSSNumbers2
    30Ductile Iron Double Socket branch flange Tee conforming to IS-9523/2000 having dimension as per table 21 of IS-9523/2000 in the nominal diameter/sizes with external bitumen coating and internal cement mortar lining with finishing as per clause 13 of IS-9523/2000. (laying conforming to IS 12288 : 1987) (All sizes in mm) for 500x400 mm dia- Indore UWSSNumbers3
    31Ductile Iron Double Socket branch flange Tee conforming to IS-9523/2000 having dimension as per table 21 of IS-9523/2000 in the nominal diameter/sizes with external bitumen coating and internal cement mortar lining with finishing as per clause 13 of IS-9523/2000. (laying conforming to IS 12288 : 1987) (All sizes in mm) for 500x450 mm dia- Indore UWSSNumbers1
    32Ductile Iron Double Socket branch flange Tee conforming to IS-9523/2000 having dimension as per table 21 of IS-9523/2000 in the nominal diameter/sizes with external bitumen coating and internal cement mortar lining with finishing as per clause 13 of IS-9523/2000. (laying conforming to IS 12288 : 1987) (All sizes in mm) for 600x100 mm dia- Indore UWSSNumbers1
    33Ductile Iron Double Socket branch flange Tee conforming to IS-9523/2000 having dimension as per table 21 of IS-9523/2000 in the nominal diameter/sizes with external bitumen coating and internal cement mortar lining with finishing as per clause 13 of IS-9523/2000. (laying conforming to IS 12288 : 1987) (All sizes in mm) for 600x600 mm dia- Indore UWSSNumbers4
    34GI HEX NIPPLE 15mm dia - Indore UWSSNumbers6485
    35GI HEX NIPPLE 15mm dia - Indore UWSSNumbers15265
    36Electro-Fusion Tapping Ferrule (Branch Tapping Saddle) female BSP Threaded with SS 304 insert fittings in accordance with BS EN 12201 : Part-3 suitable for drinking water with in black/blue colour manufactured from compounded PE80/PE 100 virgin polymer and compatible with PE80/PE100 pipes in pressure rating SDR 11 with min PN 12.5 rated for water application for 200X20 mm - Indore UWSSNumbers1871
    37Gun metal/ brass check (non return) valves class-I conforming to IS- 778/1984 of 15 mm dia- Indore UWSSNumbers5618
    38GALVANIZED IRON (MS) PIPES CLASS MEDIUMIS- 1239/2004 PART-1 & PART-II FOR 15MM DIA MEDIUM DUTY (AS STAND PIPE)- INDORE UWSSRunning metre6520.59
    39GI union size 15mm- Indore UWSSNumbers3709
    40Long Neck HDPE Pipe End with metal slipon flange of 160mm dia (OD) PE Pipe- Indore UWSSNumbers53
    41Long Neck HDPE Pipe End with metal slipon flange of 200mm dia (OD) PE Pipe- Indore UWSSNumbers38
    42Providing and laying Pipe end confirming to IS specifications of 400 mm dia (OD) PE pipe- Indore UWSSNumbers2
    43MS PIPE; STANDARD :- IS 4270; GRADE :- Fe 410; DIAMETER :- DN 250 mm; WALL THICKNESS :- 5 mm;metre4.705
    44MS PIPE; STANDARD :- IS 1239; GRADE :- Heavy; CLASS :- Heavy; DIAMETER :- 150 mm (OD); WALL THICKNESS :- 5.4 mm;metre34
    45REDUCER - CONCENTRIC; HDPE; CLASS :- PN10; TYPE OF ENDS :- PLAIN ENDS; LARGER DIAMETER :- DN 250 mm; SMALLER DIAMETER :- DN 160 mm;Numbers1
    46UNEQUAL TEE; DI; CLASS :- K12; TYPE OF ENDS :- DOUBLE SOCKET; LARGER DIAMETER :- DN 250 mm; SMALLER DIAMETER :- DN 150 mm;Numbers1
    47BEND;DI;90 degree;IS 9523;K12;TYPE OF ENDS:-DOUBLE SOCKET;PIPE DIAMETER:-DN 450 mmNumbers1
    48EQUAL TEE; HDPE; PE 100; CLASS :- PN6; PIPE DIAMETER :- DN 200 mm;Numbers1
    49SPIGOT FLANGE; DI; IS 9523; PN 16; PIPE DIAMETER :- DN 700 mm;Numbers2
    50EQUAL TEE; HDPE; PE 100; PN8; PIPE DIAMETER :- DN 250 mm;Numbers23
    51PIPE SADDLE; HDPE; Electrofusion Tapping; PIPE DIAMETER :- DN 200 mm; SMALLER DIAMETER :- DN 20 mm;Numbers292
    52FERRULE; BRASS; IS 2692; PIPE DIAMETER :- DN 15 mm;Numbers175
    53BEND; DI; 90 degree; IS 9523; PN 16; TYPE OF ENDS :- DOUBLE SOCKET; PIPE DIAMETER :- DN 700 mm;Numbers2
    54Reducer; DI; IS 9523; K12; TYPE OF ENDS :- DOUBLE FLANGED; LARGER DIAMETER :- DN 600 mm; SMALLER DIAMETER :- DN 500 mm;Numbers1
    55Scour Valve Tee; DI; TYPE OF ENDS :- Double Socket With Flanged Branch; LARGER DIAMETER :- DN 600 mm; SMALLER DIAMETER :- DN 200 mm;Numbers1
    56Spigot; DI; TYPE OF ENDS :- FLANGED; PIPE DIAMETER :- DN 700 mm;Numbers1
    57EQUAL TEE; HDPE; PN 16; TYPE OF ENDS :- ELECTROFUSION; PIPE DIAMETER :- DN 315 mm;Numbers22
    58REDUCER - CONCENTRIC; HDPE; PN10; LARGER DIAMETER :- DN 315 mm; SMALLER DIAMETER :- DN 250 mm;Numbers140
    59GM NON RETURN VALVE; CLASS :- PN 1.6; DIAMETER :- DN 15 mm;Numbers4082

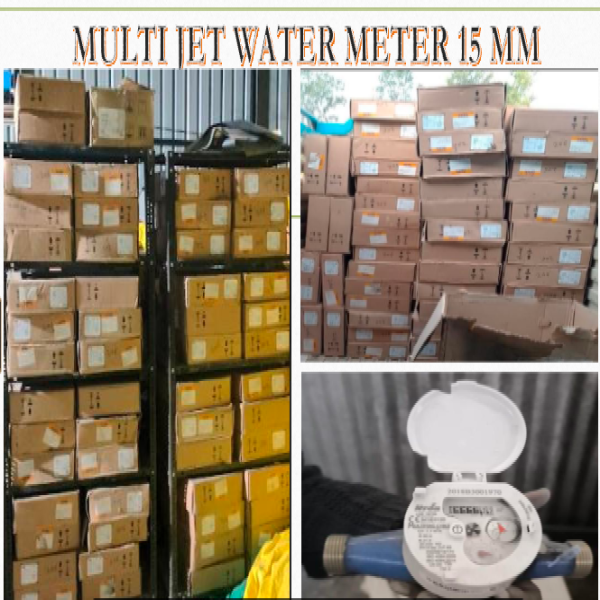

    60MULTI JET WATER METER; TYPE :- Class -B magnetically coupled; OTHER SPECIFICATIONS :- IS 779-1994/ ISO 4065; SIZE :- DN 15 mm;Numbers114
    61ELECTROMAGNETIC FLOWMETER; TYPE :- PN 16; SIZE :- DN 300 mm;Numbers3
    62WATER METER PROTECTION BOX; SIZE :- 15 mm;Numbers117
    63Ductile iron double Socket 11.25° Bends conforming to IS-9523/2000 having dimension as per table 16 of IS-9523/2000 in the nominal diameter/sizes with external bitumen coating and internal cement mortor lining (laying conforming to IS 12288:1987) for 600mm dia - Indore UWSSNumbers4
    64Ductile Iron Double Socket branch flange Tee conforming to IS-9523/2000 having dimension as per table 21 of IS-9523/2000 in the nominal diameter/sizes with external bitumen coating and internal cement mortar lining with finishing as per clause 13 of IS-9523/2000. (laying conforming to IS 12288 : 1987) (All sizes in mm) for 700x700 mm dia- Indore UWSSNumbers2
